Light Sensing 0-10V ZHAGA Controller Casambi Roads Lawns Courtyards Parks
| Place of Origin | China |
| Brand Name | LongJoin |
| Model Number | JL-712B2A2 |

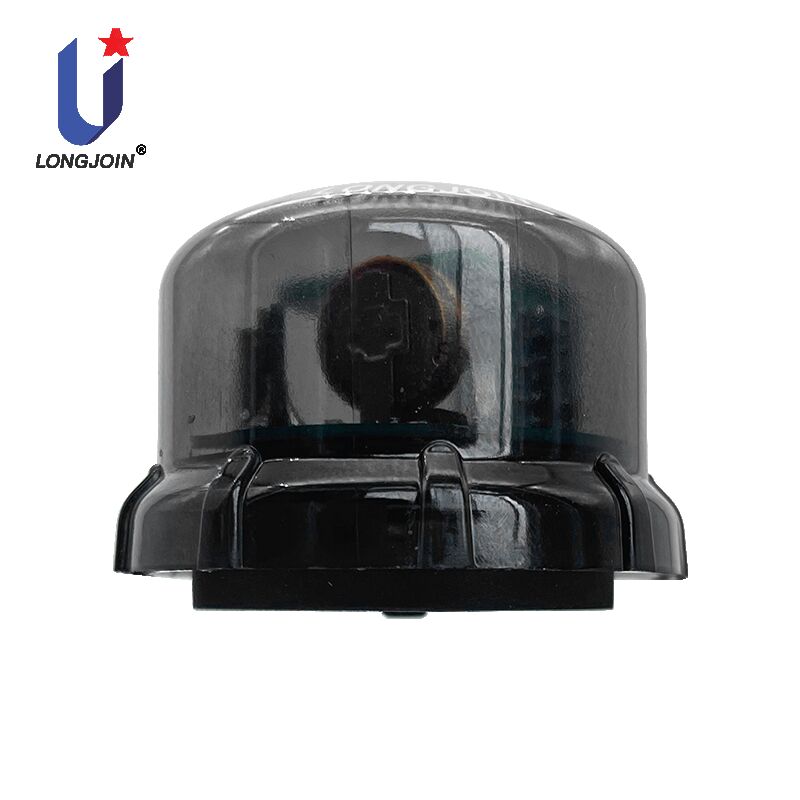

JL-712B2A2 ZHAGA Controller
,Parks ZHAGA Controller
,Courtyards zhaga node
JL-712B2A2 light-sensing,0~10V,Casambi roads, lawns, courtyards, parks, parking lots, factories, warehouses
Product Summary
The JL-712B2A2 light controller product is a smart latch type light controller developed based on the Zhaga Book-18 interface standard. It uses a combination of light sensing and microwave sensing sensors, can output 0-10V dimming signals, and support Casambi Bluetooth mesh communication network. It can be controlled by Bluetooth near field, or be controlled remotely by Bluetooth gateway.You can configure parameters and scenarios using the Casambi APP
. This light controller is suitable for lighting scenarios such as roads, lawns, courtyards, parks, parking lots, factories, warehouses, etc.
Product size
Product Features
-
12-24VDC power supply, low power consumption
-
Zhaga Book-18 interface standard
-
0-10V dimming mode
-
Dynamic adjustment of microwave frequency to avoid mutual interference during dense installation
-
Φ 50.4 * 35mm compact size, suitable for installation on various lighting fixtures
-
Light sensitivity+microwave, on-demand lighting, more energy-efficient
-
Visible light filtered photosensitive sensor
-
High performance microwave, with a hanging height of 15 meters and an induction radius of ≥ 10 meters
-
CASAMBI BLE MESH
-
IP66
Specifications
|
Power supply |
Voltage: 12-24VDC |
|
Power dissipation |
＜0.385W(12V)；＜0.55W(24V) |
|
Dimming |
0-10V |
|
Sensors |
Light sensitivity+microwave |
|
Spectral range |
800~1100nm |
|
Microwave frequency |
5.8GHz |
|
Maximum hanging height |
15 meters |
|
Induction radius |
≥10 meters |
|
Start-up time |
＜200mS |
|
Sensitivity |
Default 80%, adjust through APP |
|
Scene |
Custom scenes can be created and edited through the APP |
|
mechanical vibration |
IEC60068-2-6 |
|
Flammability Level |
UL94-V0 |
|
Operating Temperature |
-40 ℃~70 ℃ |
|
Storage Temperature |
-40 ℃~85 ℃ |
|
Operating Humidity |
5% RH~99% RH |
|
IP Level |
IP66 |
|
Certifications |
CE, ZHAGA, ROHS |
FAQs
A: It is a ZHAGA-compliant lighting controller featuring light sensing and 0-10V dimming, supported by the Casambi wireless lighting control system, for intelligent outdoor lighting management.
A: ZHAGA interface ensures universal mechanical and electrical compatibility, plug-and-play installation, waterproof structure, and easy replacement on most LED street lights and outdoor luminaires.
A: It detects ambient brightness in real time and outputs a 0-10V analog signal to automatically adjust lamp brightness, realizing dusk‑to‑dawn control and smooth, energy‑saving dimming.
A: Casambi enables wireless Bluetooth mesh control, supporting remote dimming, timing, scene setting, group control, and convenient commissioning via mobile app without extra wiring.
A: It is widely used in roads, lawns, courtyards, parks, residential areas and other outdoor public lighting projects requiring intelligent and flexible control.
