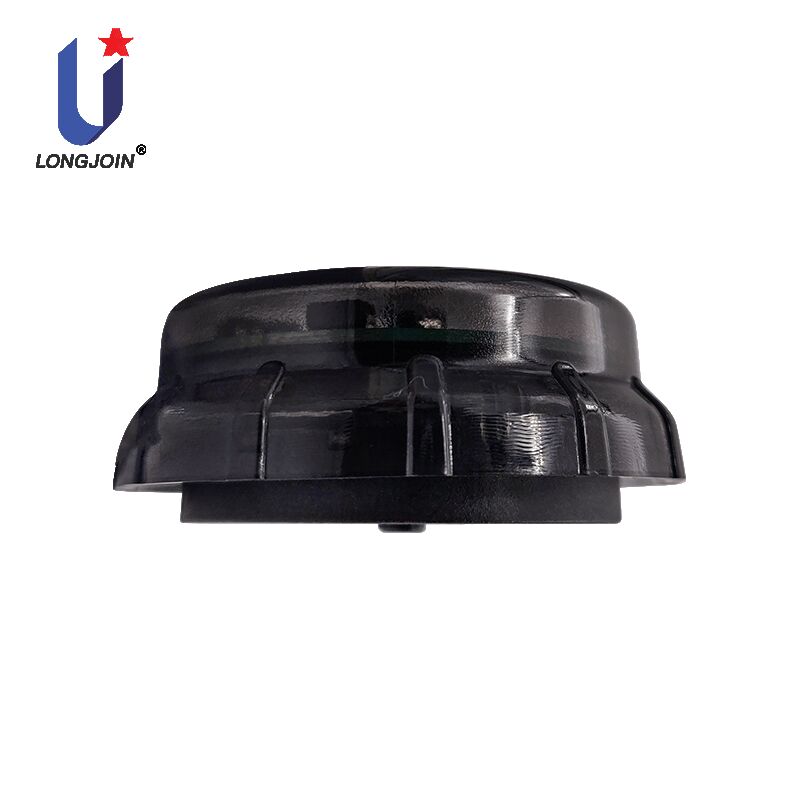

JL-711A light-sensing 0~10V Zhaga Book-18 Controller roads, lawns, courtyards, and parks
Product Summary
JL-711A series light controller products are intelligent rotary lock light controllers developed based on ZHAGA BOOK18 interface standard, which can output 0~10V dimming signals. All models have built-in photosensitive sensors. The light controller is suitable for lighting scenes such as roads, lawns, courtyards, and parks.
Product size
Product Features
-
DC power supply, low power consumption
-
ZHAGA BOOK18 interface standard
-
Small size, suitable for installation in most lamps
-
0~10V dimming interface
-
Interference lighting filtering
-
Lamp reflected light compensation
-
IP66
Specifications
|
Model |
JL-711A1 |
JL-711A2 |
|
Power Supply |
Rated voltage:12~24VDC Rated current:10mA |
|
|
Power Consumption |
12V/8.4mW；24V/16.8mW |
|
|
Sensor Type |
Photosensitive tube |
|
|
Spectral Acquisition Range |
800~1100nm |
|
|
Dimming interface |
Type:0~10V Accuracy:±2% Drive current:20mA(Typical) |
|
|
Turn on Illuminance |
50Lux(±10) |
|
|
Turn off Illuminance |
100Lux(±10)
|
|
|
Initialization |
After power on, the light is turned on by default and maintains 5S, then enters the auto-sensing operation mode |
|
|
Turn on delay |
10S max*1 |
|
|
Turn off delay |
10S max*1 |
|
|
0%~100%；100%~0% Brightness change time |
5S |
|
|
Midnight Dimming |
NC |
Trigger: the average center point of the first ten days (The first day default call night base is 10 hours) Dimming Ratio:50% Duration Ratio:40% Less than 10 days is calculated based on the actual number of days |
|
Energy saving strategy |
NC |
Factory Preset |
|
Mechanical Vibration |
IEC60068-2-6 |
|
|
Flammability Level |
UL94-V0 |
|
|
Operating Temperature |
-40℃~70℃ |
|
|
Storage Temperature |
-40℃~85℃ |
|
|
Operating Humidity |
5%RH~96%RH |
|
|
IP Level |
IP66 |
|
|
Certifications |
|
|
