Sensor Integration Light Sensitive Zhaga Book 18 Zhaga Controller Ultra Low Cost
| Place of Origin | China |
| Brand Name | LongJoin |
| Model Number | JL-701A |

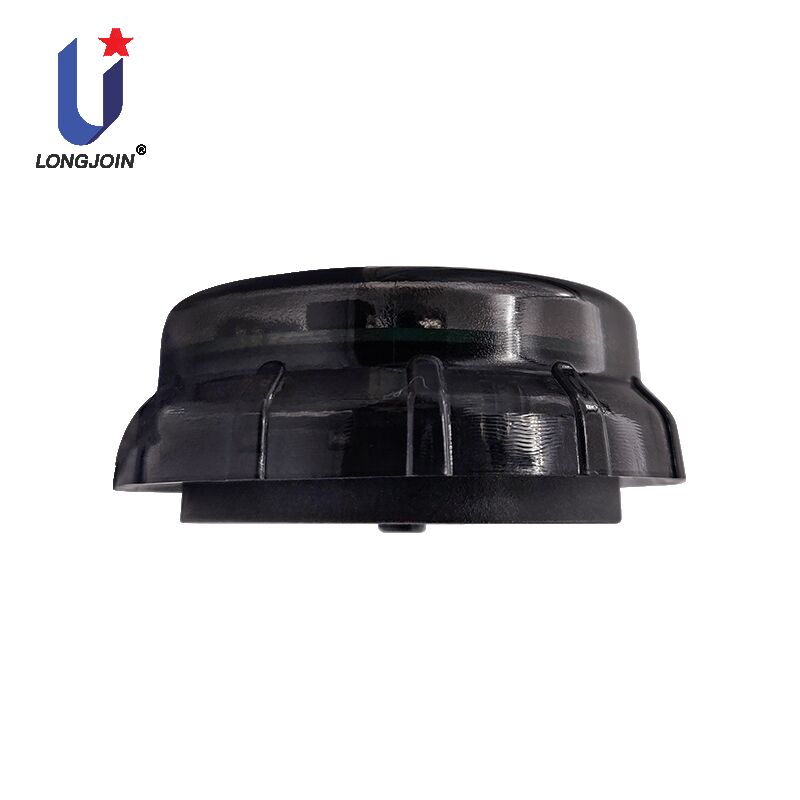

JL-701A ZHAGA Controller
,Light Sensitive ZHAGA Controller
,10V zhaga book 18
JL-701A light-sensitive Zhaga Book-18 Zhaga Controller ultra-low-cost
Product Summary
JL-701A is an ultra-low-cost electronic rotary lock light controller developed based on the ZHAGA BOOK18 interface standard. It can output 0V or 10V dimming signal through self-photosensitive.
The light controller is suitable for lighting scenes such as roads, lawns, courtyards, and parks.
Product size
Product Features
-
ZHAGA BOOK18 interface standard
-
ultra low cost
-
compact size, suitable for installation to various lamps
-
1.5mA ultra low working current
-
anti false triggering design of interference light source
-
no load power consumption ≤ 0.12W
-
environmental illumination ratio of switch action: 1:4
-
power on: full on by default, 5S self-test
-
protection grade: up to IP66
Specifications
|
Model |
JL-701A |
|
Power Supply |
Rated voltage:12~24VDC Rated current:3mA |
|
Power Consumption |
Day:12~24V/1.5mA Night:12~24V/1.2mA |
|
Dimming |
0/10V |
|
Dimming interface |
0V or suspended (OD gate output) |
|
Spectral Acquisition Range |
350~1100nm,Peak wavelength 550nm |
|
Turn on Illuminance |
16Lux(±10) |
|
Turn off Illuminance |
64Lux(±10) |
|
Turn on delay |
5S |
|
Turn off delay |
15S |
|
Electrostatic Immunity |
Standard: IEC61000-4-2 Contact Discharge: ±8kV,CLASS A Air Discharge: ±15kV,CLASS A |
|
Mechanical Vibration |
IEC60068-2-6 |
|
Flammability Level |
UL94-V0 |
|
Operating Temperature |
-40℃~70℃ |
|
Storage Temperature |
-40℃~85℃ |
|
Operating Humidity |
5%RH~99%RH |
|
IP Level |
IP66 |
|
Life |
≥ 8000 h |
|
Certifications |
|
FAQs
A: It is a light-sensitive outdoor lighting controller that fully complies with the Zhaga Book 18 standard, used to automatically control lighting according to ambient brightness.
A: It maintains complete Zhaga Book 18 compatibility and stable light-sensitive control, while featuring an ultra-low-cost design suitable for large-scale batch deployment.
A: It automatically turns lights on at dusk and off at dawn by sensing ambient light level, realizing intelligent automatic control and effective energy saving.
A: Zhaga Book 18 ensures standardized mechanical and electrical interfaces, plug-and-play installation, wide compatibility with most LED street lights and outdoor luminaires.
A: It is ideal for road lighting, park lighting, courtyard lighting, community lighting and other large-scale public lighting projects pursuing high cost performance.
