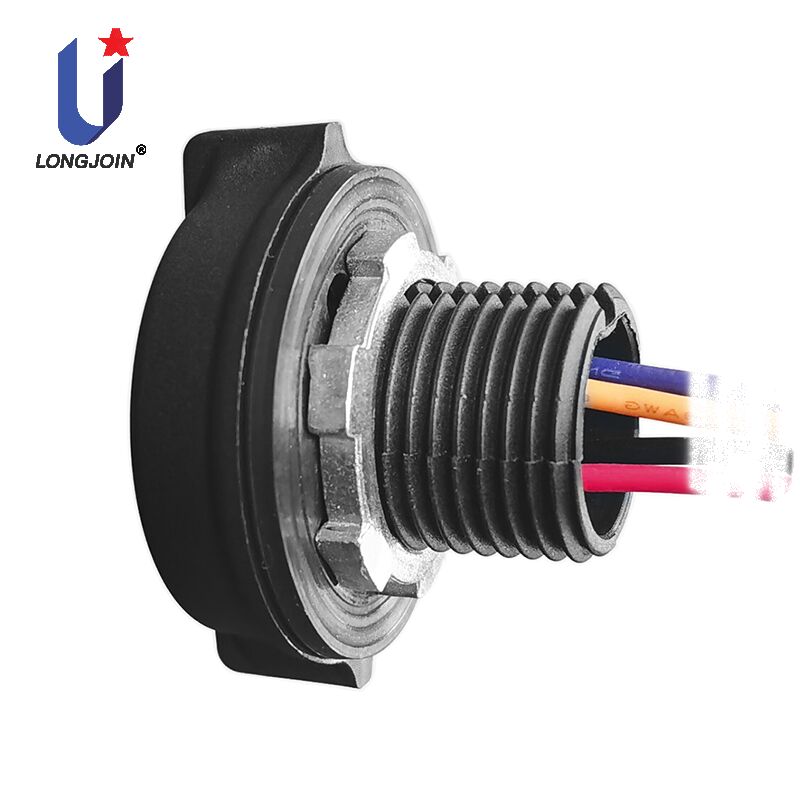

JL-700M Z10 lock socket,USA 0-10V dimming scheme

Product Summary

Z10 standard, JL-700M socket is suitable for 0-10V dimming scheme, which is convenient for developing standard equipment suitable for road lighting, regional lighting or residential lighting.

According to the equipment arrangement, these equipment can adopt monitoring, communication, control and other functions based on 0-10V dimming.

Product size

Drilling plan

Product Features

• Z10 standard interface, used for 0-10V dimming scheme

• small size, suitable for more lamps

• advanced sealing, IP66 can be achieved without installing screws

• expandable solution: it is allowed to use Φ 40-80mm expansion controller with the same connection interface in the central management system

• flexible installation position, which can be installed on the top / bottom / side of the lamp

• integrated single gasket to seal lamps and modules to minimize assembly time

Specifications

Model No.	JL-700M
Related Humidity	96%
Ambient Temperature	-40°C ~ +70 °C
*Wires	AWM 1015,18/20/22 AWG,105°C AWM 1007,18/20/22 AWG,80°C
IP	IP66
Certifications

*Conductor specification: # 20 conductor has UL certification
